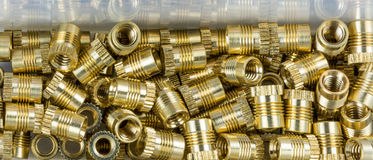

Brass
Bronze
Copper
Steel

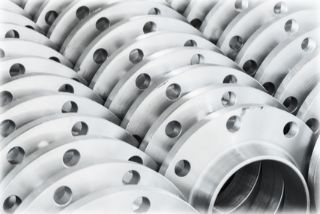

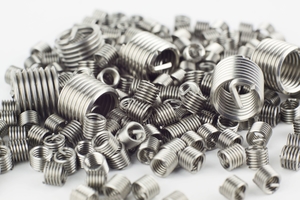

Stainless Steel
Spring Steel
Titanium

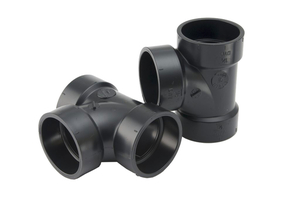

ABS

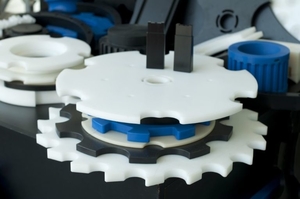

Acetal

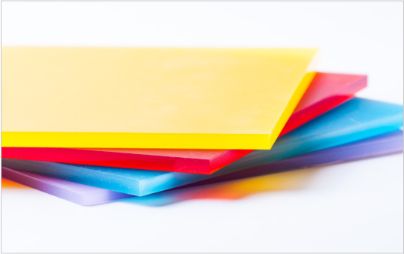

Acrylic

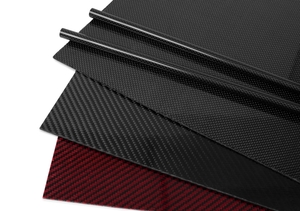

Carbon Fiber
Laminated Fiberglass
Nylon
Polycarbonate
Polyethylene
Polypropylene
Polystyrene
PTFE
PVC

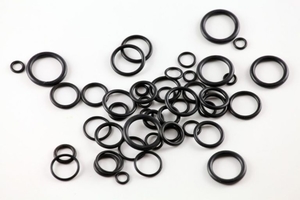

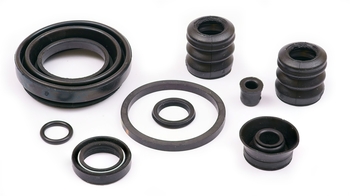

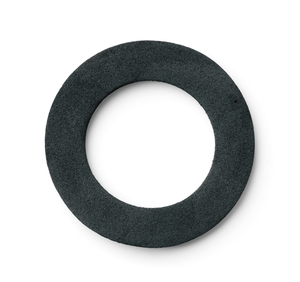

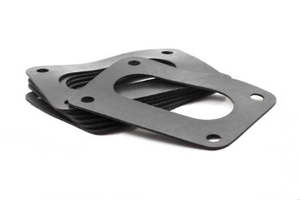

Rubber
NBR Nitrile
Neoprene
Silicone
Machine options

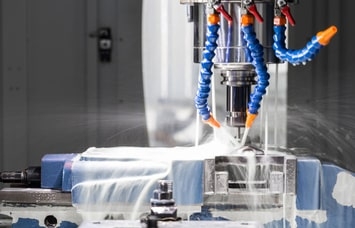

CNC Milling

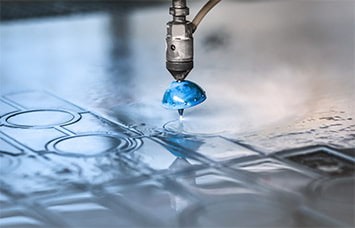

Waterjet Cutting

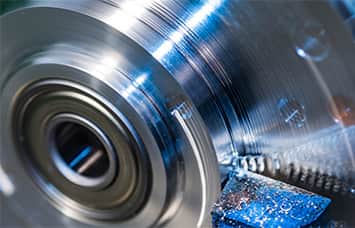

CNC Turning

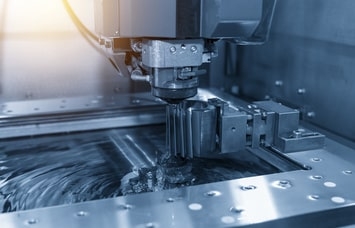

EDM

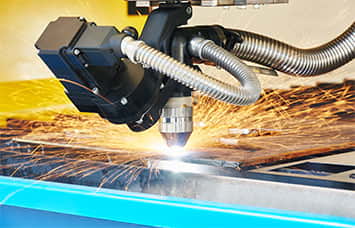

Laser Cutting

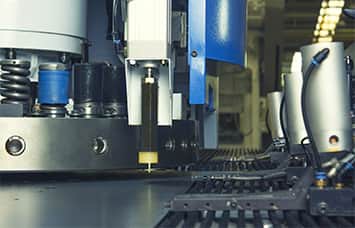

Turret Punching

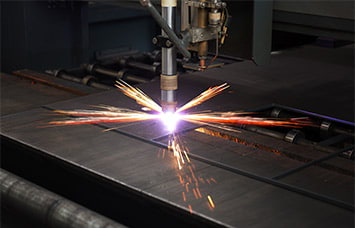

Plasma Cutting
Secondary Manufacturing

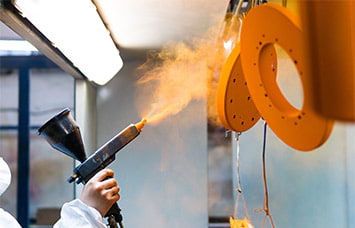

Surface Finishing
CNC Machining Materials
Material Also Known As Type Colors Spec Sheet Description
1018 Steel Low Carbon Steel 1018 metal     General Purpose 1018 steel is the most prominent of the carbon steels. The low carbon content makes this steel ductile and suitable for forming and welding.
4130 Alloy Steel Alloy Steel 4130 metal     Offers great weldability without compromising impact resistance. Often used in gears and fasteners.
Alloy Steel 4140 Alloy Steel 4140 metal     Additional chromium makes this steel corrosion and fracture resistant.
Aluminum 2024-T3 Aluminum 2024 metal     2024 Aluminum is used when a high strength-to-weight ratio is required, such as for gears, shafts, and fasteners. It is nonmagnetic and heat treatable.
Aluminum 5052 Aluminum 5052 metal     Corrosion resistant aluminum frequently used in sheet metal applications.
Aluminum 6061 T6 Aluminum 6061-T6 metal     Aluminum 6061 is easily machined and lightweight, perfect for prototypes, military, and aerospace applications.
Aluminum 6063-T5 Aluminum 6063 metal     Commonly used outdoors as architectural trim, railings, and door frames, 6063 aluminum has better machinability than 3003. It is nonmagnetic and heat treatable.
Aluminum 7050-T7451 Aluminum 7050 metal     Preferred over 7075 aluminum for use in structural applications, 7050 is a high-strength material that resists fatigue and stress cracking. 7050 is nonmagnetic and heat treatable
Aluminum 7075 T6 Aluminum 7075 T6 metal     Harder and higher strength aluminum alloy good for high-stress parts.
Aluminum 7075 T7351 Aluminum 7075 T7351 metal     Harder and higher strength aluminum alloy good for high-stress parts.
Aluminum MIC-6 Aluminum MIC-6 metal     A cast aluminum plate often used for tooling and base plates.
ASTM A36 A36 Steel Plate metal     General purpose, hot rolled steel plate. Great for structural and industrial applications.
Brass 260 Easy Forming Brass 260 metal     A highly formidable brass. Great for radiator components and decorative door hardware.
Brass C360 Free Machining Brass C360 metal     A highly machinable brass. Great for prototyping gears, fittings, valves and screws.
C932 M07 Brg Brz Bearing Bronze C932 metal     C932 is the standard bearing bronze for light-duty applications. It is easily machinable and resistant to corrosion.
Copper 101 Super Conductive Copper 101 metal     Commonly known as Oxygen-Free Copper, this alloy is great for electrical conductivity.
Custom Custom (See Notes) metal     Please add a note or attach a PDF drawing to this quote to specify your custom material in the Notes and Drawings tab.
EPT Copper C110 EPT Copper C110 metal     A multipurpose copper comes in all shapes and sizes. Often used in electrical applications.
Stainless Steel 15-5 Stainless Steel 15-5 metal     Offers corrosion resistance similar to Stainless 304. Improved workability, hardness, and high corrosion resistance.
Stainless Steel 17-4 Stainless Steel 17-4 metal     A high strength, corrosion resistant stainless alloy. Easily heat treatable. Typically used in medical equipment.
Stainless Steel 18-8 Stainless Steel 18-8 metal     One of the most commonly used stainless steels. Also known as Stainless Steel 304.
Stainless Steel 303 Stainless Steel 303 metal     A machinable, corrosion-resistant steel.
Stainless Steel 304 Stainless Steel 304 metal     A machinable, corrosion-resistant steel.
Stainless Steel 316/316L Stainless Steel 316/316L metal     A highly corrosion-resistant steel popular for medical devices.
Stainless Steel 416 Stainless Steel 416 metal     Easily machinable but can be heat treated to increase strength and hardness. Low corrosion resistance.
Stainless Steel 420 Stainless Steel 420 metal     Contains more carbon than Stainless 410 to give it increased hardness and strength when heat treated. Offers mild corrosion resistance, high heat resistance, and improved strength.
Steel A36 Steel A36 metal     A standard architectural, low-carbon steel. Weldable.
Ti6Al-4V Titanium (Ti-6Al-4V) metal     Titanium has an excellent strength-to-weight ratio, and the high aluminum content in Ti-6Al-4V increases strength. This is the most commonly used titanium, offering good corrosion resistance, weldability, and formability.
Titanium Grade 2 Titanium Grade 2 metal     High strength, low weight, and high thermal conductivity. Ideal for applications in the aerospace and automotive industries.
Zinc Sheet Alloy 500 Zinc Sheet metal     Continuous-cast alloy. Has good electrical conductivity and is highly resistant to corrosion. This alloy is readily treatable for painting, plating, and anodizing.

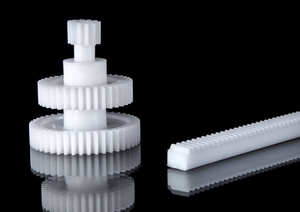

Acetal (Black) Black Delrin (Acetal) plastic Black   Acetal resin with good moisture resistance, high wear-resistance, and low friction.
Acetal (White) White Delrin (Acetal) plastic White   Acetal resin with good moisture resistance, high wear-resistance, and low friction.
Acrylic Acrylic plastic Clear   A clear glass-like plastic. Good wear and tear properties. Great for outdoor use.
Black ABS Black ABS plastic Black   High strength engineering plastic, used for many commercial products.
Custom Custom (See Notes) plastic     Please add a note or attach a PDF drawing to this quote to specify your custom material in the Notes and Drawings tab.
G-10 Garolite (Flame Retardant) Garolite G10 plastic     Constructed of an epoxy resin with fiberglass fabric reinforcement, and also called epoxy-grade industrial laminate and phenolic, this material offers high strength and low moisture absorption.
Nylon 6/6 Nylon 6/6 plastic     Offers increased mechanical strength, rigidity, good stability under heat and/or chemical resistance.
PEEK PEEK plastic     Offering excellent tensile strength, PEEK is often used as a lightweight substitute for metal parts in high-temperature, high-stress applications. PEEK resists chemicals, wear, and moisture.

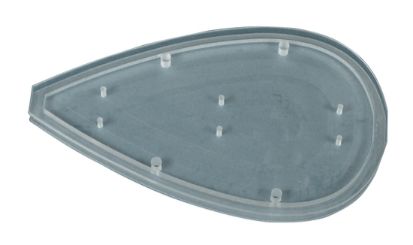

Polycarbonate Clear Polycarbonate plastic Clear   A clear or colored, light-weight, glass-like plastic that can be machined.
Polycarbonate Black Polycarbonate plastic Black   A clear or colored, light-weight, glass-like plastic that can be machined.
Polypropylene (PP) Polypropylene plastic     Polypropylene has excellent electrical properties and little or no moisture absorption. It carries light loads for a long period in widely varying temperatures. It can be machined into parts requiring chemical or corrosion resistance.
PTFE (Teflon) PTFE (Teflon) plastic     This material surpasses most plastics when it comes to chemical resistance and performance in extreme temperatures. It resists most solvents and is an excellent electrical insulator.
Ultra-high molecular weight polyethylene UHMW PE plastic     A general purpose material. Offers a unique combination of wear and corrosion resistance, low surface friction, high impact strength, high chemical resistance, and does not absorb moisture.
